Product Layout

Description

Complete freedom and mobility

In 2011 VorOtek launched the VorOtek LED HeadLight, providing Surgical Quality LED Illumination with complete freedom and mobility.

LED illumination is replacing fibre optic lighting systems. The intensity & quality of the illumination is matched and not being tethered by a fibre optic cable or power lead is a major innovation & benefit.

The VorOtek LED HeadLight range is head worn (hands free), light weight and compact, emphasizing simplicity, durability and comfort. It is available in two models – the original fixed spot size VorOtek LED Headlight and the new VorOtek X-Series HeadLight adjustable spot size Surgical LED Headlight featuring VorOtek’s Dynamic Illumination System.

Features:

VorOtek X-Series Headlight – Adjustable Surgical Quality LED HeadLight

• Dynamic Illumination System – VorOtek’s Dynamic Illumination System allows the user to adjust both the spot size and illumination intensity by simply rotating the lens housing. The result is a dramatic increase in light intensity at the smallest spot size.
• Adjustable Spot Size – The spot size can be adjusted infinitely between 50mm and 95mm at 400mm from the front lens. (see Figure 1 below)

• Surgical Quality LED Illumination – VorOtek’s compound lens system and LED technology produces:-
  • Light intensity from 90,000 lux up to a brilliant 150,000 lux
  • Colour temperature of 5,700 Degrees Kelvin
  • Colour Rendering Index of CRI 75
  • Homogenous edge-to-edge uniformity
• Coaxial LED Illumination – The illumination can be adjusted to align with the individuals visual pathway, allowing shadow free illumination of the surgical field of view.

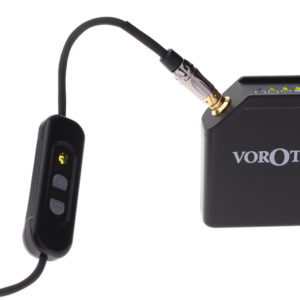

• Dimmable LED Illumination – The dimmer function provides 8 evenly spaced levels of illumination (essential for eye procedures) with easy to read LCD display.
• The VorOtek Power Pack (Lithium Ion) provides  7hrs to >20hrs of ‘on time’ depending on the level of illumination selected.
